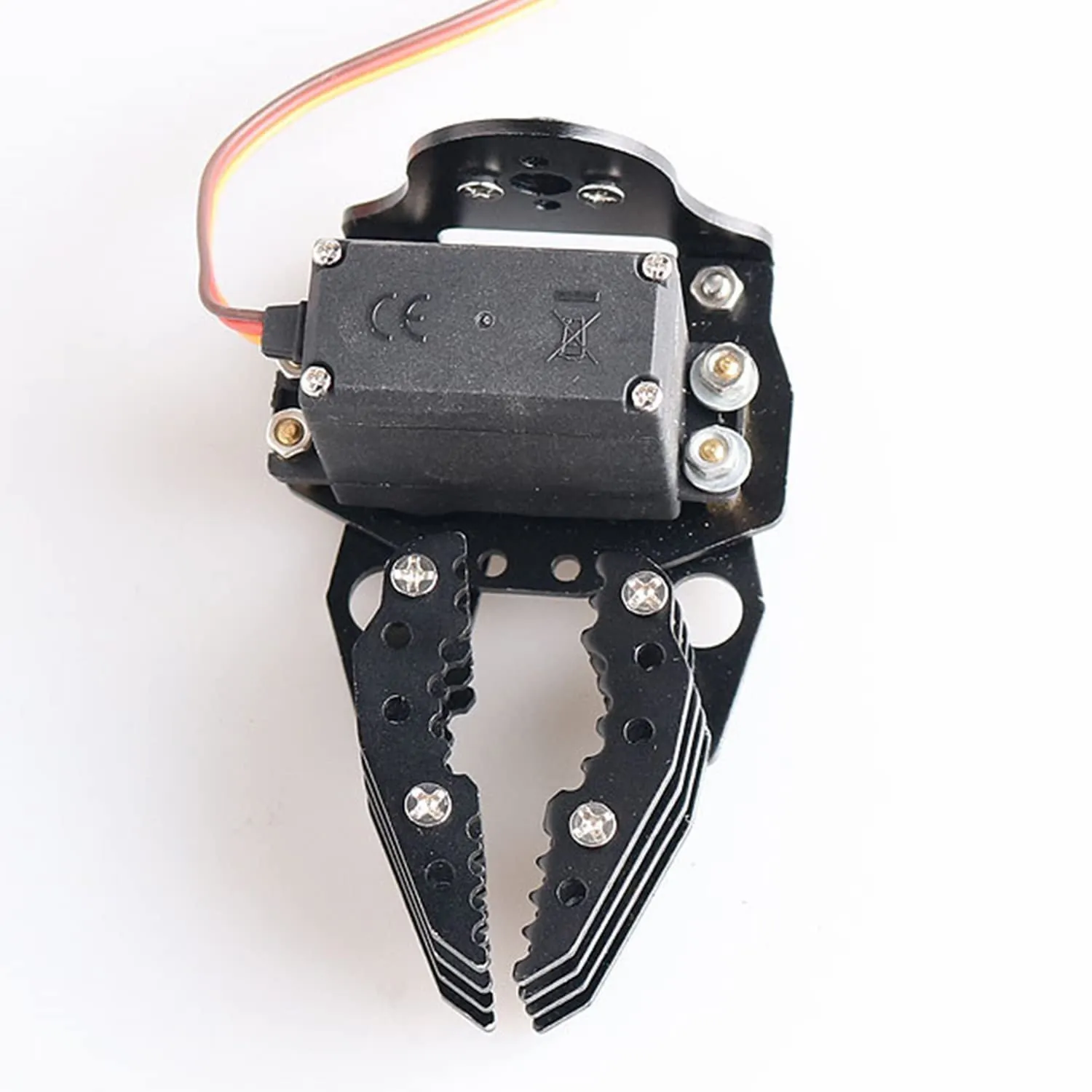

- [What You Get]: In this order, you will get 1set unassembled gripper, 1 bag screw, and 1pc MG996R servo; This mechanical robot arm claw is metal including many accessories, so please have patience to install the claw. After that, the claw is very beautiful and solid.
- [NOTE]: The claw is UNASSEMBLED for convenience of transport. But we provide the installation manual with this item or visit gitnova to get the documents, or contact us to get the document.
- [Programming]: By this metal robot claw, you can learn the robotic structure. Importantly, you can learn the code programming to control the gripper to the destinations, arduino coding, raspberry pie, microbit, and other.
- [Function]: You can use this clamp to realize some useful functions, i.e., use this claw to grip some items to the destinations. Many people use this claw to factory applications, experiments, and other repeat applications.
- [Learning]: This paw can be used for the function model realization. Maybe the precision is not high, but you can learn how to control the robot claw with servo motor by the controller, like Arduino, Raspberry pie.
Features:
- The holder is made of thickened full-hard aluminum alloy, and the shape is beautiful and practical;
- The gripper adopts a double-sided toothed structure, which makes the grasping object more stable and stable, and an essential artifact for grasping the object.
- Standard servo can be installed.

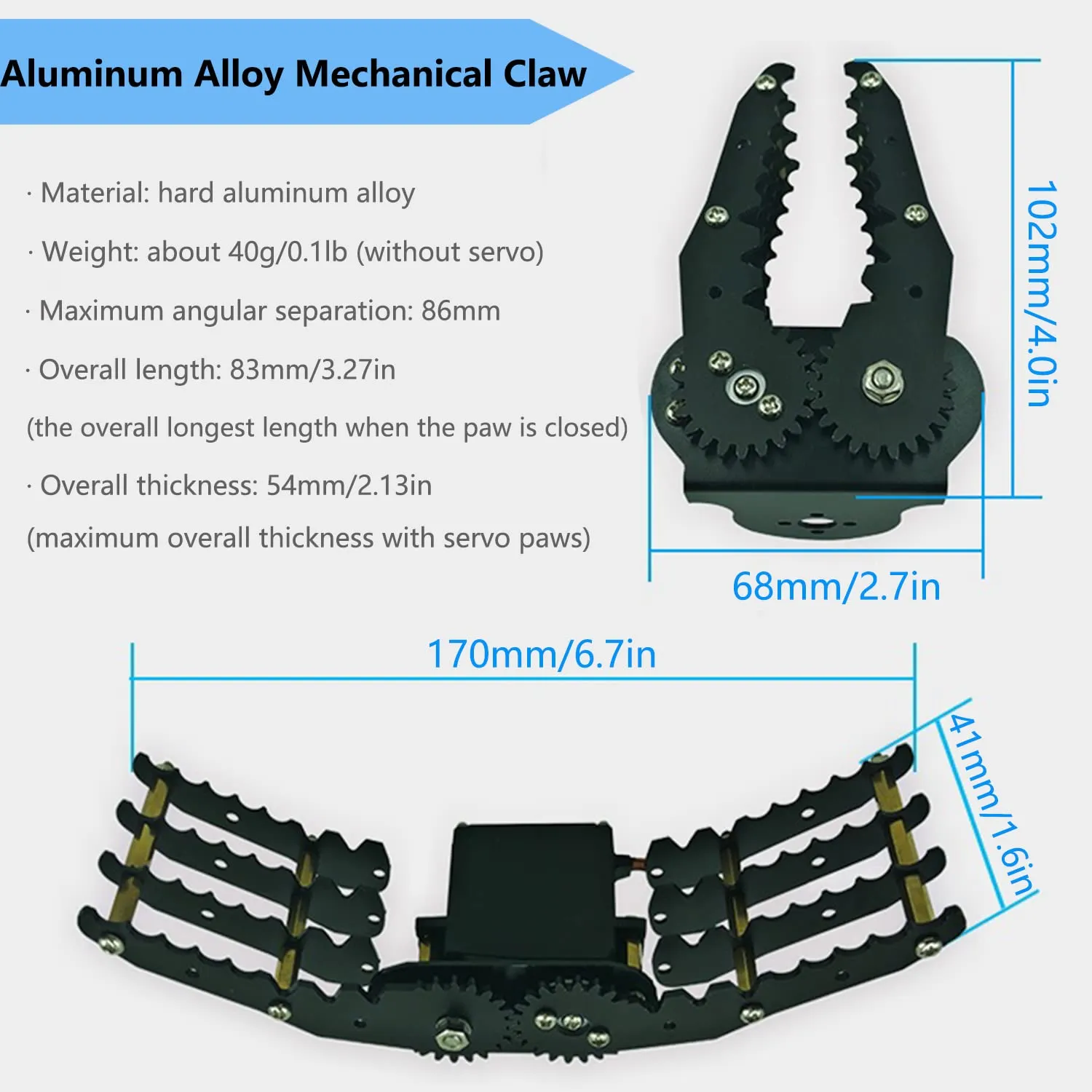

- Single mechanical gripper parameter:
- Material: hard aluminum alloy
- Weight: about 40g (without servo)
- Maximum angular separation: 86mm
- Overall length: 83mm (the overall longest length when the paw is closed)
- Overall width ①:150mm (maximum overall width when the paw is open)
- Overall width ②:55mm (maximum overall width when the paw is closed)
- Overall thickness: 54mm (maximum overall thickness with servo paws)
- Name: MG996R
- Net weight: 55 g
- Size: 40.7*19.7*42.9 mm
- Pulling force: 9.4 kg/cm (4.8 V), 11 kg/cm (6 V)
- Reaction rate: 0.17 sec / 60 degree (4.8 V ), 0.14 sec / 60 degree (6 V)
- Working voltage: 4.8-7.2 V
- Working temperature: 0°C-55°C
- Gear form: metal gear
- Working dead zone: 5 us (microseconds)
- 1 × G6 gripper
- 1 × MG996R servo
- In order to facilitate transportation, the product is not assembled.
- More documents and source code can be downloaded at gitnova.
- Product Dimensions : 1.6 x 0.78 x 1.69 inches; 1.94 ounces
- Date First Available : February 16, 2021
- Manufacturer : YCKJ
